concentrated solar power,coated steel tube collector,solar collector

FOB Reference Price:Get Latest Price
  • 1 - 49 Pieces
    $76.00
  • >=50 Pieces
    $74.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Himin/OEM
Model Number:
HM-CSP
Type:
CSP coated steel tube
Application:
Solar Thermal
Pipe Material:
Glass
type:
Vacuum Solar Collector
applaction:
Solar Thermal
pipe material:
steel
diameter:
70±5mm
Thickness:
4.0±0.3mm
length:
2000±5mm/2200±5mm
absorption:
≥94%(AM1.5)
emission:
≤8%(300°)
Coating stability:
At 350°C,the coating performance degradation<2% after 2000 hours test
Supply Ability
Supply Ability:
100000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Material: polywood case
Dimension: depends on the specification and quantity of coated steel tube
Port
Tian JIN
Product Detalis

Working principle

Working principlee of Fresnel collector is similar with parabolic trough collector.But Fresnel collectors use of several parallel flat mirrors instead of parabolic bent mirrors to concentrate the sunlight onto the receiver tube which is located several meters above the mirror field.

Product Introduction

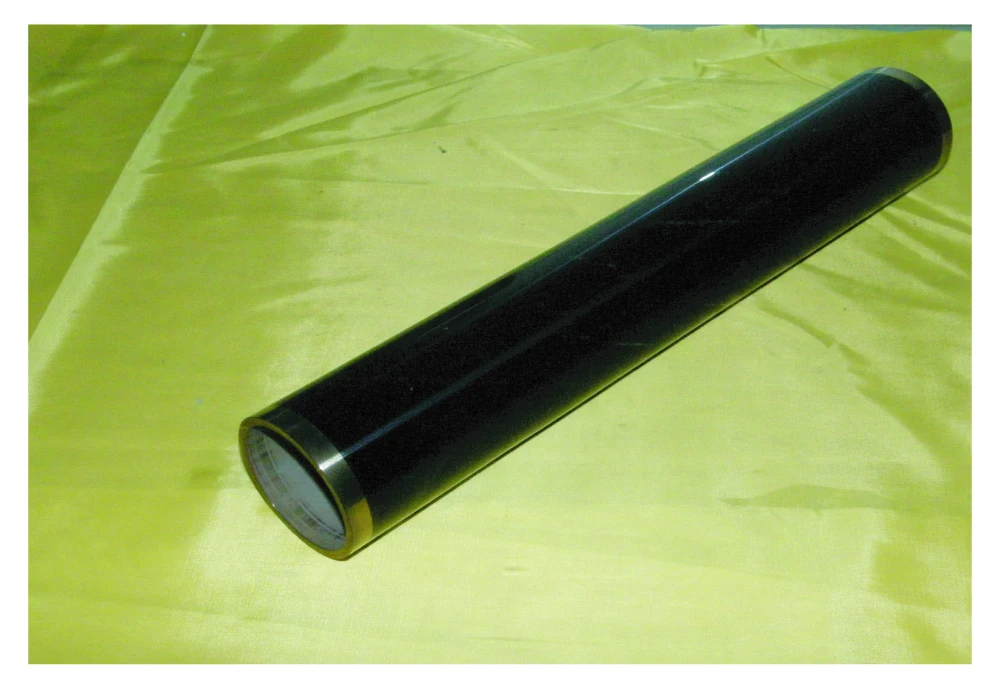

Coated steel tube

HIMIN independently developed solar selective absoring coating is able to be adopted in medium andd high-temperature air with independent intellectual property rights and relevent preparation technology in early 2006,and has applied research results into product named solar receiver(coated steel tube)which is the core component of Fresnel solar thermal power collector filed.
The Himin solar receiver-coated steel tube has passed the inspection respectively by China National Solar Energy Center and German fraunhofer institude.The absorption ratio of such tube is greater than 94% and the emission ratio is lower than 8% under 300°.Moreover ,the absorption ratio attenuation is lower than 3% and the emission ratio increases less than 10% in 15,000 hours' aging test performance.The greatest advantage is that the film layer is stable and the performance is almost not attenuation in the medium and high-temperature (300°~350°) air.

Product Packing
Company Information

Himin solar is one of the best reliable solar brands in China.

As the leader in China solar industry, Himin Solar Co., Ltd established in 1995 with more than 6,000 employees. It insists on the mission of "For the blue sky of our children, realize micro-emission earth" and always focuses on solutions for the global energy sustitution.

Himin owns 3,000,000.00 square meters industry park-China Solar Valley, where has built the first and most advanced full-automatic solar energy vacuum tube line with fully independent innovation in the world; the most advanced production line for solar water heater, photovoltaic module, solar lights; workshop for solar collector ( U pipe, heat pipe, all-glass vacuum tube and flat plate), coated steel tube and etc.

Himin's product has been exported to over 100 countries, including Germany, Austria, Italy, England and etc. And we will never stop pushing forward environment protection for human beings in the worldwide.
