Solar thermal system, Solar heating system, solar collector

FOB Reference Price:Get Latest Price
$1,000.00 - $600,000.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 100 >100
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 1000 Sets)
Customized packaging (Min. Order: 1000 Sets)

More

Graphic customization (Min. Order: 1000 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Himin
Model Number:
HM 316
Solar Power (W):
0
Specification:
Normal
Application:
Industrial, Swiming pool, domestic solar water heater, hospital, school, hotels
Output Voltage (V):
0
Load Power (W):
0
Work Time (h):
8 Hours
Glass grade:
A grade
Material:
Borosilicate Glass3.3
Supply Ability
Supply Ability:
1 Set/Sets per Week
Packaging & Delivery
Port
Tianjin
Lead Time :
Quantity(Sets) 1 - 100 >100
Est. Time(days) 10 To be negotiated
Product Description

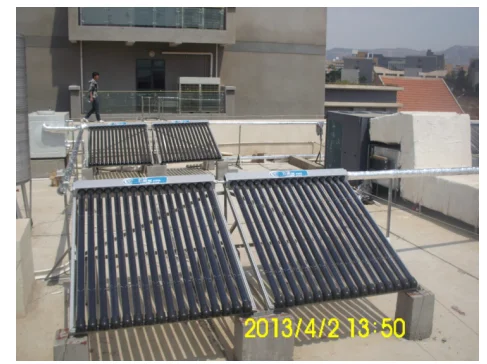

Applications of Himin hot water system

In hotels, dormitories, hospitals, schools and venues where the water consumption is proportionally higher,energy efficiency becomes extremely important. Our hot water system allow for the effective generation and transportation of hot water with outstanding efficiency.

Detailed Images

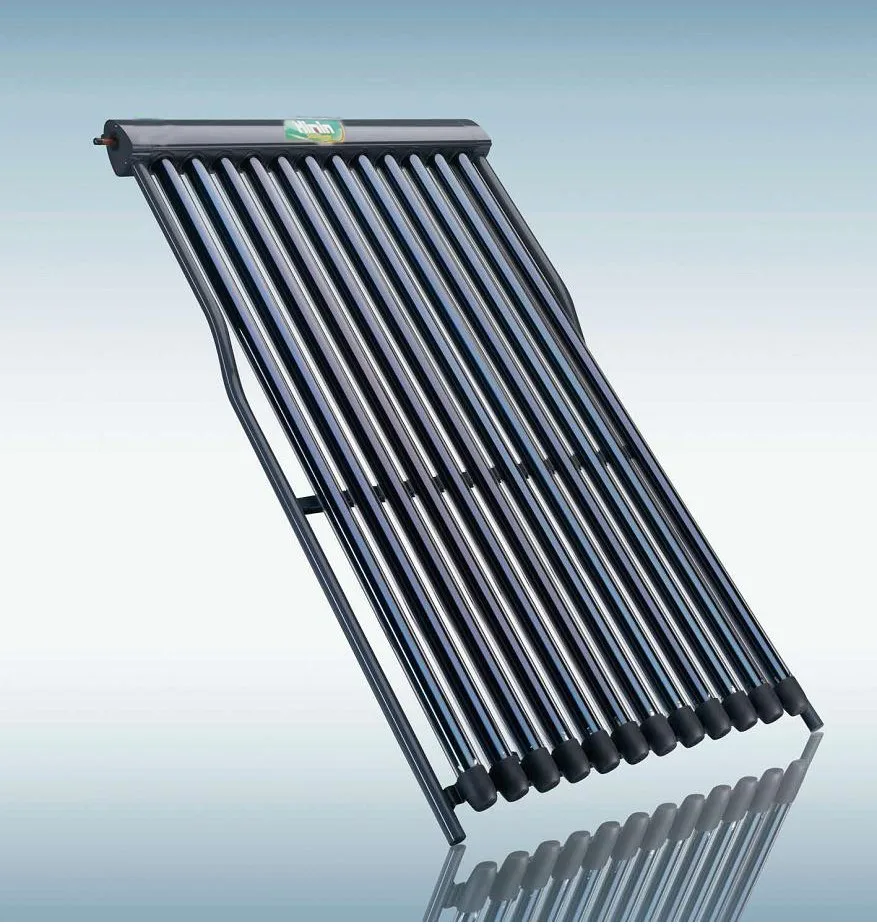

1. Solar Collector

The Himin JPS collector is composed of a high efficiency vacuum tube. The unites uses the most advaced sputtered double cemet selective absorber coating that features an absorptive of 0.94 and emissivity of 0.04. It has water inside the glass tube, The bracket goes together with the collector. The water circulation is inside the collector header,the tube and the water storage tank, which is called the direct system.

Physical Properties

Characteristic
Valve
Tube L/OD
2100mm/58mm
Overall Length
2930mm
Tube No
30PCS
Overall Width
2390mm
Absober Area
2.85m2
Aperture Area
3.34m2
Gross Area
7m2
Max Operating Pressure
0kPa

2. Combined water tank

3. SPE tank


4. Controll System


Application
Our Company
QA & Testing Center

Himin persists on product quality and customer oriented priciple all the time and never stagnates in quatity improvement. It creates the firest and largest quatity assurance system and test center in Chian beyond China Nation Standard to guarantee output quatity of products. Because of which, Himin is granted the ISO 9000 Quality Control Certification and CNAS certification and gets outstanding reputation and soild brand recognition in global solar market
